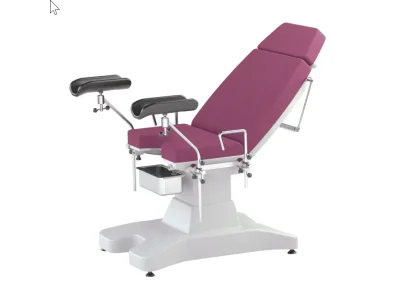

Gynecological chair BETA Deluxe BOOM
Archimed Gynaecology Table –
Standard Column is designed for gynaecology, examination, urology and minor surgical operations.
The chair consists of 3 main parts.
Back rest, seat part and leg rest.
The chair makes back up&down, chair up&down and trendelenburg & reverse trendelenburg movements by 3 DC motors with using handset.
Height can be adjusted by handset.
It moves up&down vertically .
Steel construction is painted with electrostatic powder coating and protected with galvanize against corrosion.
And the construction is covered with anti-bacterial and easy cleanable ABS plastic.
So that, the chairs seems more aesthetically.
ABS covering designed to keep itself in the upholstery and it blocks the dust which may go into the upholstery.
Drain pan does not effected with table movements during the operations, it stays stabile.
There are stainless steel rails at the two sides of the table.
With these rails, all accessories can be moved to all directions easily (up/down/right/left).
Leg supports are easily removable and surgeons can get the supports manually to all desired positions

Wide range of colouring

Easy to clean and disinfect

Safety load 200 kg

STANDARD ACCESSORIES

Pair of swiveling and electrically height adjustable leg rest with plastic ABS foot support and the corresponding clamp

Head cushion removable

Stainless steel rail 30x10mm at seat section

Inox basin

Basin holder with safety device

Paper roll holder

Plastic ABS cover for back section, seat and base.

Metal heavy construction painted with electrostatic chip resistant anticorossion paint covered with plastic ABS cover

Divided in three sections (leg section is removable),made with intergrated upholstery mattress washable and disinfectable in a choice of colours.

Leg section removable

Leg section removable and foldable Detachable upholstery for cleaning Stainless steel 18/10 side rails at the back

rest 30x10mm (25x10mm upon request)

Stainless steel 18/10 side rails at the seat section 30x10mm(25x10mm upon request)

Arm rest for blood donation with corresponding clamp

I.V. pole adapter

Inox tray with moving arm for equipment

Handset with magnetic locking key and memory for selected positions

Wheels with individual brakes Adaptor for portable lighting Intergrated socket

Drain gutter for fluids

TECHNICAL DATA

Electric movement of High/Low when seat section horizontal     61cm-81cm

Electric movement of High/Low when seat section in trend position        54cm-90cm

Electric movement of back section           0 till +50Ο

Electric movement trend-antitrend         +5 till  -20Ο

Electric movement of leg rests

Motor voltage   24V DC

Connection main (different upon request)          230 V AC 50-60 Hz

Safety load         200kgr

Bedding platform dimensions

Head section      260mm x 550mm

Back section       650mm x 550mm

Seat section       370mm x 550mm

Leg         section 350mm x 550mm

Base dimensions 1020mm x 560mm
