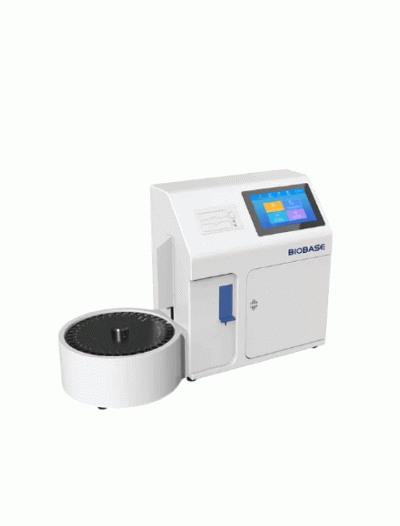

Electrolyte Analyzer

Features:
●The software supports automatic potential tracking correction to ensure stable performance
●Automatic monitoring and filtering of tiny air bubbles to ensure measurement accuracy
●Wave flushing and pipeline flushing can avoid blockage and cross-contamination
●Power-off protection, can protect data storage, the result can be stored up to 50,000
●Low consumption, effectively reducing the cost of consumables
●7-inch high-definition touch screen, comprehensive content display
●With the function of automatic fault alarm and elimination, improve work efficiency
Parameters:

Model
BKE Series

Sample
Serum, plasma, whole blood, cerebrospinal fluid and dilute urine

Measuring Speed
≤25s

Analysis Method
Ion selective electrode (ISE)

Sample Volume
60~150ul

Sample Position
30 sample positions, 5 emergency positions, 2 QC positions

Injection mode
Manual or automatic injection can be selected

Storage
Up to 50,000 test results

Printer
Build-in thermal printer

Interface
RS232 port for LIS

Display
7-inch high-definition touch screen

Language
Chinese and English, other languages can be customized

Calibration
Automatic and Manual calibration

Other Function
Sample volume detection

Power Supply
AC110~240V,50/60Hz, 100W

Temperature
10~30℃

Relative Humidity
≤ 80 %

Atmospheric Pressure
86~106 kPa

Model
BKE-A
BKE-B
BKE-C
BKE-D

Test Items
K+, Na+, Cl–
K+, Na+, Cl–
K+, Na+, Cl–, iCa2+, nCa2+, TCa2+, pH
K+, Na+, Cl–, iCa2+, nCa2+, TCa2+, pH

Sample Tray
No
Yes
No
Yes

External Size(W*D*H)
390*200*434mm
660*276*434mm
390*200*434mm
660*276*434mm

Net Weight
8.2kg
11.9kg
8.2kg
11.9kg

Package Size(W*D*H)
Instrument:390*500*530 mm
Reagent:215*160*130mm
Instrument:390*500*720 mm
Reagent:215*160*130mm
Instrument:390*500*530 mm
Reagent:215*160*130mm
Instrument:390*500*720 mm
Reagent:215*160*130mm

Gross Weight
Instrument:13kg
Reagent:1.8kg
Instrument:17.5kg
Reagent:1.8kg
Instrument:13kg
Reagent:1.8kg
Instrument:17.5kg
Reagent:1.8kg

Items
Measuring Range
Resolution

K+
0.5-20.0mmol/L
0.01 mmol/L

Na+
15-200mmol/L
0.1 mmol/L

Cl–
15-200mmol/L
0.1 mmol/L

Ca2+
0.1-6.0mmol/L
0.01 mmol/L

pH
4-9pH
0.01 pH
